• Throttle control, electronic
• Transfer case, AWD, electronic automatic system, full-time, "always-on" all-wheel drive (AWD Model only.)
• Differential, heavy-duty locking rear
• Rear axle, 3.42 ratio
• All-wheel drive
• Battery, heavy-duty with rundown protection and retained accessory power
• Alternator, 160 amps
• Trailering equipment, heavy-duty includes trailering hitch platform, 7-wire harness with independent fused trailering circuits and 7-way sealed connector
• GVWR, 7300 lbs. (3311 kg) (AWD Model only.)
• Suspension, front independent, SLA, coil over shock and stabilizer bar
• Suspension, rear 5-link coil springs
• Suspension Package, Magnetic Ride Control
• Automatic level control, heavy-duty, air
• Steering, power, rack-and-pinion
• Brakes, 4-wheel antilock, 4-wheel disc, VAC power
• Exhaust, dual-outlet stainless-steel

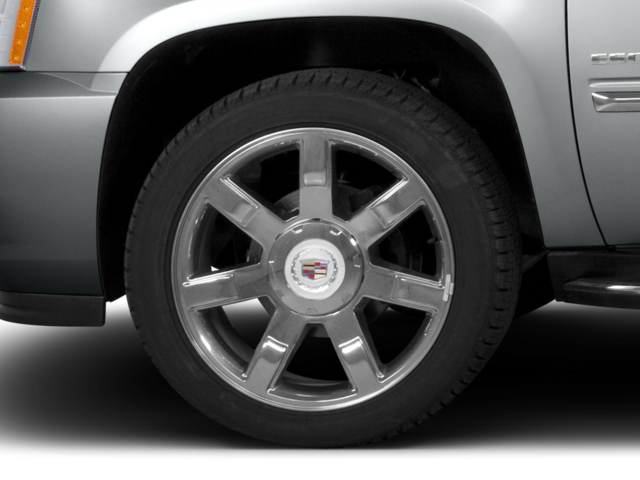

• Wheels, 22" x 9" (55.9 cm x 22.9 cm) multi-spoke chromed aluminum (Requires (QST) P285/45R22 all-season blackwall TL AL2 tires and (Z95) Magnetic Ride Control.)
• Tires, P285/45R22, all-season, blackwall TL AL2
• Tire inflation kit
• Sunroof, power, tilt-sliding with express-open/-close and wind deflector
• Luggage rack, roof-mounted with chrome accents
• Luggage rack center rails
• Assist steps, power-retractable

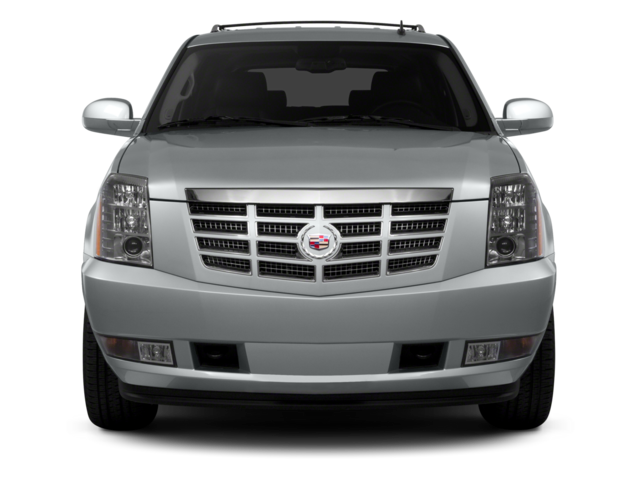

• Fascia, front, body-color
• Fascia, rear, body-color
• Moldings, color-keyed bodyside with chrome accents
• Headlamps, LED
• Headlamps, Twilight Sentinel automatic delay
• Headlamps, IntelliBeam
• Fog lamps, front rectangular halogen, integral in front fascia
• Tail lamps, LED illumination
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield, driver- and front passenger-side glass)
• Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming, color-keyed with integrated turn signal indicators, ground illumination and programmable to provide curb view when in reverse
• Wipers, front intermittent
• Wiper, rear intermittent with washer
• Door handles, chrome

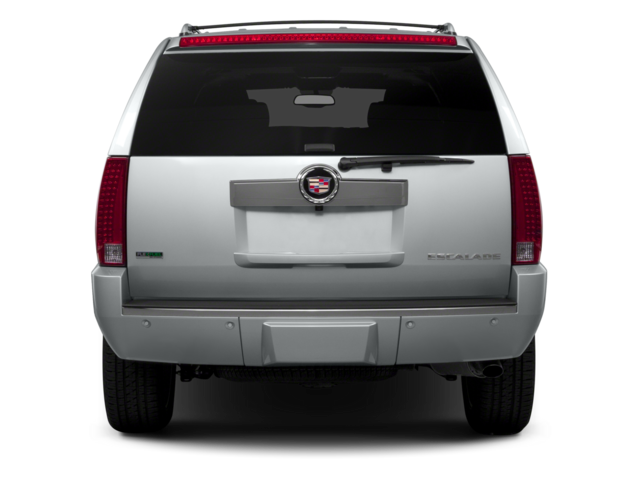

• Body, liftgate with deep-tinted liftglass includes rear-window wiper/washer and defogger
• Body, power liftgate

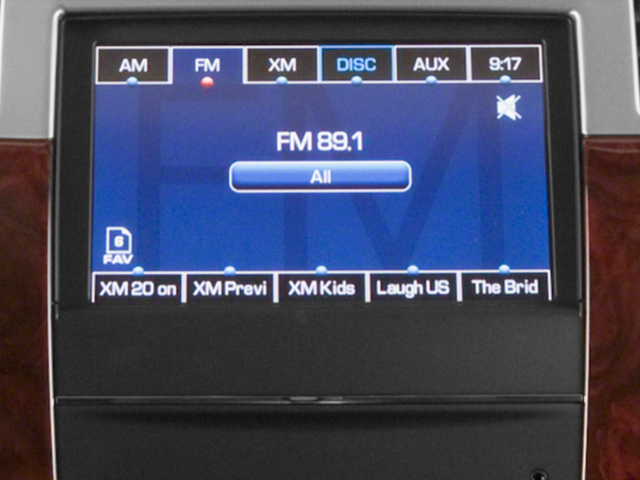

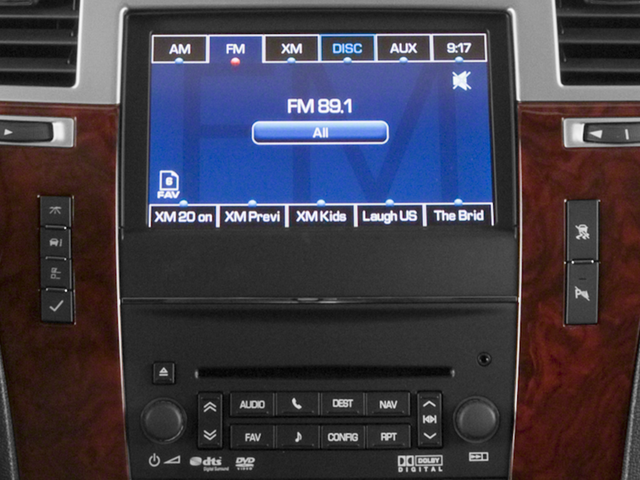

• Audio system with navigation, AM/FM/SiriusXM stereo with MP3/CD/DVD video/audio changer compact flash, DSP, RDS, clock, voice recognition and USB interface
• Entertainment system, rear seat, in-dash DVD player with remote control, overhead display, (2) 2-channel wireless infrared headphones, auxiliary audio/video jacks on rear of center console, sound compression, CD-R and CD-R/W capability, LED backlighting display, MP3 capable
• Entertainment system, DVD, backside of front row head restraints
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system and HMI (Human Machine Interface)
• SiriusXM Satellite Radio is standard on nearly all 2014 GM models. Enjoy a 3-month trial to the XM All Access package, with over 150 channels including commercial-free music, all your favorite sports, exclusive talk and entertainment. With All Access, listen to everything, everywhere, in your car and on your computer, smartphone or tablet. (IMPORTANT: The SiriusXM Satellite Radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at siriusxm.com. Other fees and taxes will apply. All fees and programming subject to change.)
• NavTraffic is available in over 100 markets and works with your vehicle's navigation system to give you continuously updated traffic data right when you need it most - while you're driving. You'll avoid traffic tie-ups, save time and gas by getting alternate routes, and, in some cases, receive traffic speed and drive-time information. Plus, you can use NavTraffic at the same time you're enjoying SiriusXM Satellite Radio. You'll find that once you start using NavTraffic, you won't want to drive without it. (SiriusXM Satellite Radio and NavTraffic subscriptions sold separately or as a package after trial period. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at siriusxm.com. NavTraffic available only in select markets. For more information, see siriusxm.com/navtraffic.)
• Audio system controls, rear with 2 headphone jacks (headphones not included) and controls for volume, station selection and media
• Audio system feature, Bose 5.1 Cabin Surround Sound system with 10 speakers
• Audio system feature, USB port, located inside center console, radio interface

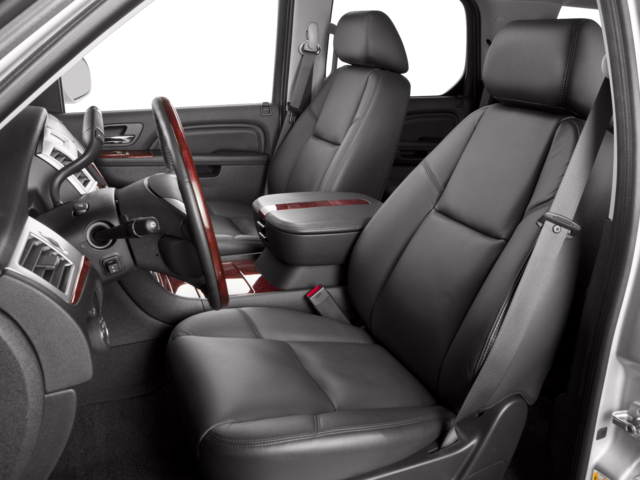

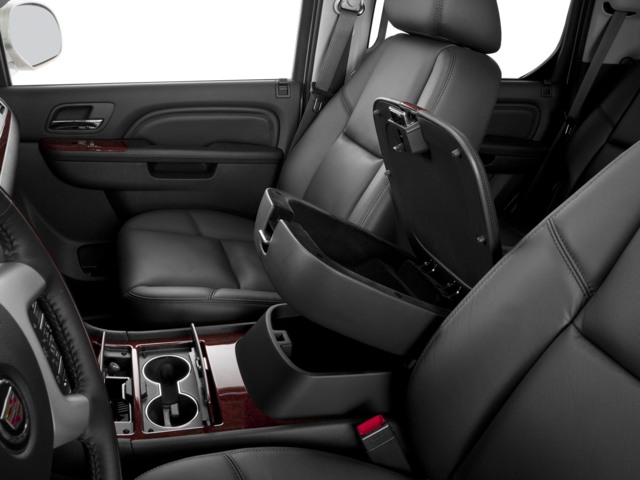

• Seats, front bucket with leather seating surfaces, driver and front passenger 14-way power seat adjusters including 4-way power lumbar control, independently heated driver and front passenger seat cushions and seatbacks (3 settings) and 2-position driver memory

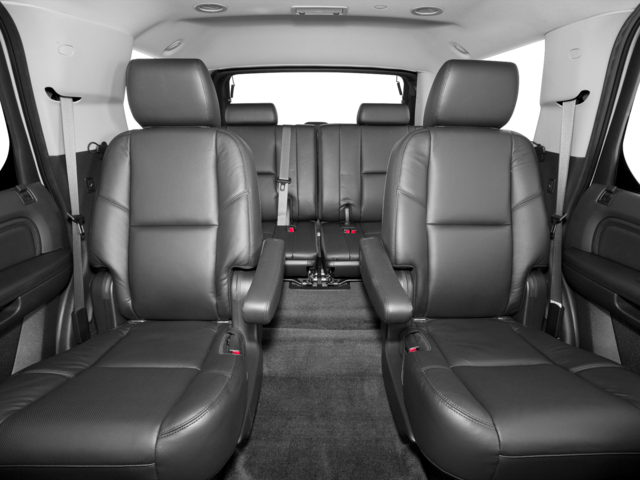

• Seats, second row bucket with leather seating surfaces reclining with heated seat cushions (3 settings) and fold-down armrests
• Seats, heated and cooled driver and front passenger

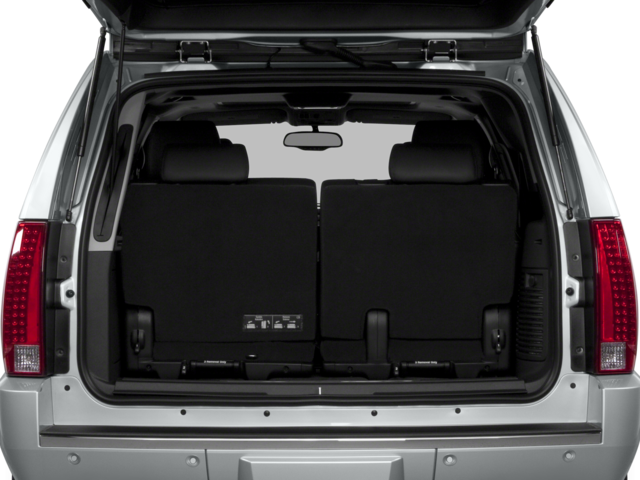

• Seats, third row 50/50 split-bench, 3-passenger can be folded, tumbled forward or totally removed
• Seat release, second row power for tumble and fold
• Console, floor with damped-door storage covers, large storage bin, analog clock, dual cup holders, rear seat audio and electronic climate controls and second row heated seat controls
• Floor covering, color-keyed carpeting
• Floor mats, color-keyed carpeted first and second row

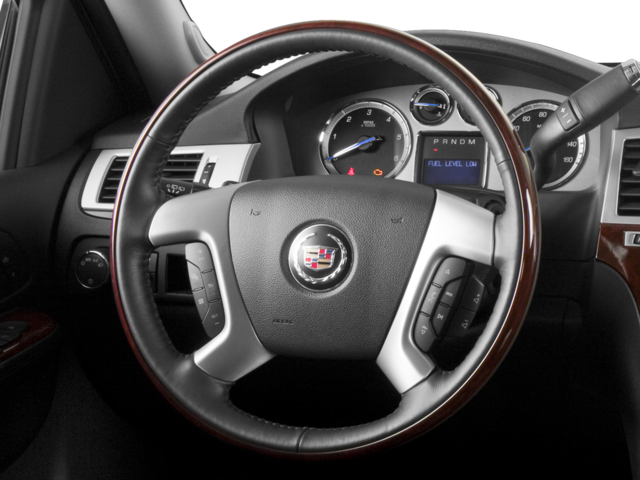

• Steering wheel, power-tilt, color-keyed with wood and leather-wrapped rim, locking.
• Steering wheel, heated
• Steering wheel controls, mounted audio and Driver Information Center controls

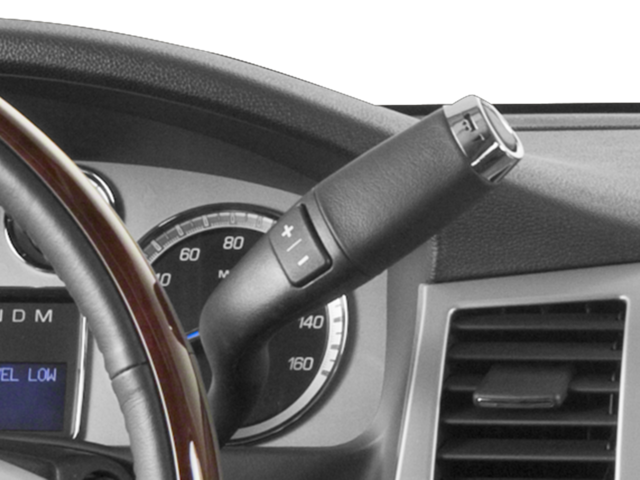

• Tow/haul mode selector, button located at end of shift lever
• Driver Information Center with programmable personalization features such as door locking and unlocking, a trip computer with trip odometer and individual tire pressure read outs, fuel information such as range, average mpg, gallons used and oil life, and a message center that displays dozens of warning messages such as low fuel, door ajar, security, seat belt reminder, low coolant and oil pressure low

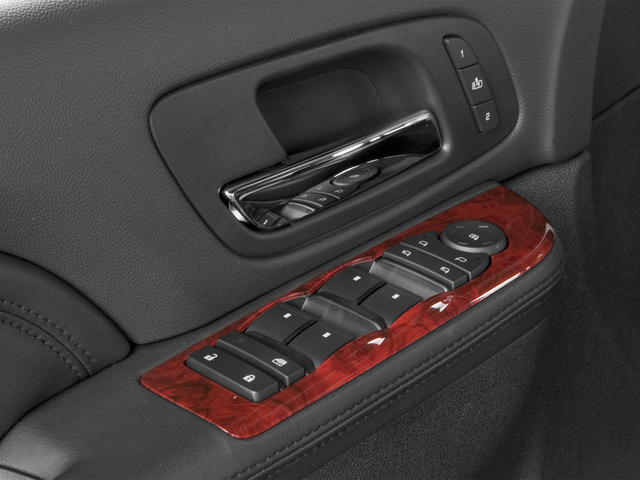

• Windows, power with driver and front passenger Express-Up/Down and lockout features
• Door locks, power programmable with lockout protection and power lock for liftgate
• Pedals, power-adjustable for accelerator and brake
• Remote Keyless Entry
• Remote vehicle start, adaptive
• Cruise control, electronic with set and resume speed
• Universal Home Remote includes garage door opener, 3-channel programmable
• Theft-deterrent system, vehicle, PASS-Key III+
• Climate control, tri-zone automatic with individual climate settings for driver, right-front passenger and rear passengers
• Climate control, rear air conditioning
• Climate control, rear heat
• Defogger, rear-window electric
• Cup holders, quad front, dual second row and single third row
• Cup holders, heated and cooled
• Mirror, inside rearview auto-dimming, includes OnStar controls.
• Console, overhead deluxe with reading lights and (UG1) Universal Home Remote (Includes sunroof controls)
• Visors, driver and front passenger illuminated vanity mirrors with extenders

• StabiliTrak, vehicle stability enhancement system with Rollover Mitigation, includes disable switch
• Traction control, all-speed, electronic
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, dual-stage frontal, driver and right-front passenger with (AL0) Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, head curtain side-impact, first, second and third row outboard seating positions with rollover sensor (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, seat-mounted side-impact, driver and right-front passenger for thorax and pelvic protection (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Passenger Sensing System, sensor indicator inflatable restraint, front passenger/child presence detector (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar, 1-year of Directions and Connections plan includes Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance and Turn-by-Turn Navigation (Visit onstar.com for coverage map, details and system limitations. Services vary by model and conditions.)
• Rear Park Assist
• Rear Vision Camera
• Side Blind Zone Alert
• Safety belts, first and second row belts to body, third row belts to seat, lap and shoulder all seating positions
• Door locks, child rear security
• Tire Pressure Monitor System (does not apply to spare tire)

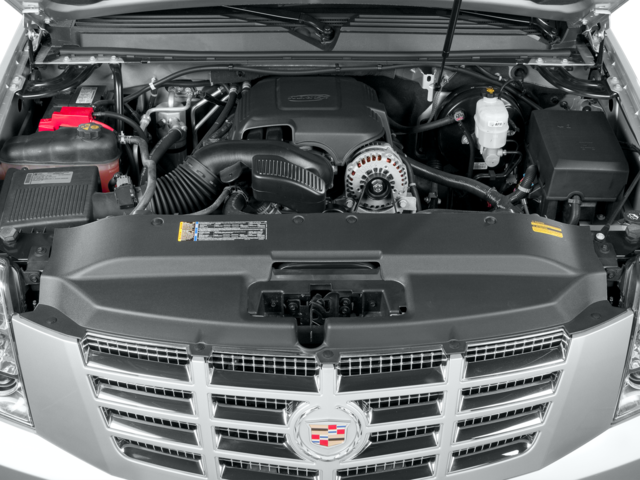

ENGINE, VORTEC 6.2L V8 SFI (E85)

• with Active Fuel Management and E85 FlexFuel capability (403 hp [300.5 kW] @ 5700 rpm
• 417 lb-ft of torque [562.9 N-m] @ 4300 rpm) (STD)

• Engine
• Vortec 6.2L V8 SFI (E85) with Active Fuel Management and E85 FlexFuel capability (403 hp [300.5 kW] @ 5700 rpm
• 417 lb-ft of torque [562.9 N-m] @ 4300 rpm)
• Throttle control
• electronic
• Differential
• heavy-duty locking rear
• Rear axle
• 3.42 ratio
• Cooling
• external engine oil cooler
• heavy-duty
• Cooling
• external transmission oil cooler
• heavy-duty air-to-oil
• Battery
• heavy-duty with rundown protection and retained accessory power
• Alternator
• 160 amps
• Trailering equipment
• heavy-duty includes trailering hitch platform
• 7-wire harness with independent fused trailering circuits and 7-way sealed connector
• GVWR
• 7300 lbs. (3311 kg) (AWD Model only.)
• Suspension
• front independent
• SLA
• coil over shock and stabilizer bar
• Suspension
• rear 5-link coil springs
• Automatic level control
• heavy-duty
• air
• Steering
• power
• rack-and-pinion
• Brakes
• 4-wheel antilock
• 4-wheel disc
• VAC power
• Exhaust
• dual-outlet stainless-steel
• Tires
• P285/45R22
• all-season
• blackwall TL AL2
• Tire inflation kit
• Fascia
• front
• body-color
• Fascia
• rear
• body-color
• Moldings
• color-keyed bodyside with chrome accents
• Headlamps
• LED
• Headlamps
• Twilight Sentinel automatic delay
• Fog lamps
• front rectangular halogen
• integral in front fascia
• Tail lamps
• LED illumination
• Mirrors
• outside heated power-adjustable
• power-folding and driver-side auto-dimming
• color-keyed with integrated turn signal indicators
• ground illumination and programmable to provide curb view when in reverse
• Door handles
• chrome
• Body
• power liftgate
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system and HMI (Human Machine Interface)
• NavTraffic is available in over 100 markets and works with your vehicle's navigation system to give you continuously updated traffic data right when you need it most - while you're driving. You'll avoid traffic tie-ups
• save time and gas by getting alternate routes
• and
• in some cases
• receive traffic speed and drive-time information. Plus
• you can use NavTraffic at the same time you're enjoying SiriusXM Satellite Radio. You'll find that once you start using NavTraffic
• you won't want to drive without it. (SiriusXM Satellite Radio and NavTraffic subscriptions sold separately or as a package after trial period. If you decide to continue your service at the end of your trial subscription
• the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at siriusxm.com. NavTraffic available only in select markets. For more information
• see siriusxm.com/navtraffic.)
• Audio system feature
• Bose 5.1 Cabin Surround Sound system with 10 speakers
• Seat release
• second row power for tumble and fold
• Floor covering
• color-keyed carpeting
• Steering wheel
• power-tilt
• color-keyed with wood and leather-wrapped rim
• locking.
• Steering wheel controls
• mounted audio and Driver Information Center controls
• Instrumentation
• analog with speedometer
• odometer
• fuel level
• engine temperature and tachometer
• Windows
• power with driver and front passenger Express-Up/Down and lockout features
• Pedals
• power-adjustable for accelerator and brake
• Remote vehicle start
• adaptive
• Cruise control
• electronic with set and resume speed
• Theft-deterrent system
• vehicle
• PASS-Key III+
• Cup holders
• quad front
• dual second row and single third row
• Cup holders
• heated and cooled
• Mirror
• inside rearview auto-dimming
• includes OnStar controls.
• Visors
• driver and front passenger illuminated vanity mirrors with extenders
• Daytime Running Lamps with automatic exterior lamp control
• Air bags
• head curtain side-impact
• first
• second and third row outboard seating positions with rollover sensor (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags
• seat-mounted side-impact
• driver and right-front passenger for thorax and pelvic protection (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Park Assist
• Rear Vision Camera
• Safety belts
• first and second row belts to body
• third row belts to seat
• lap and shoulder all seating positions
• Door locks
• child rear security

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• Fuel Economy Est-Combined (MPG): 15
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 17.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4200
• Gross Axle Wt Rating - Rear (lbs): 4200
• Curb Weight - Front (lbs): 2884
• Curb Weight - Rear (lbs): 2834
• Gross Vehicle Weight Rating Cap (lbs): 7300
• Gross Combined Wt Rating (lbs): 14000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1215
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 5-Link
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 4100
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3925
• Axle Capacity - Rear (lbs): 4200
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 1.81
• Shock Absorber Diameter - Rear (mm): 1.81
• Stabilizer Bar Diameter - Front (in): 1.41
• Stabilizer Bar Diameter - Rear (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.5 x 0.787
• Tires
• Front Tire Order Code: QST
• Rear Tire Order Code: QST
• Front Tire Size: P285/45R22
• Rear Tire Size: P285/45R22
• Front Tire Capacity (lbs): N/A
• Rear Tire Capacity (lbs): N/A
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Wheels
• Front Wheel Size (in): 22 x 9.0
• Rear Wheel Size (in): 22 x 9.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.75
• Steering Ratio (:1), At Lock: 3
• Turning Diameter - Curb to Curb (ft): 39.0
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 116.00
• Length, Overall w/rear bumper (in): 202.50
• Width, Max w/o mirrors (in): 79.00
• Height, Overall (in): 75.90
• Overhang, Front (in): N/A
• Overhang, Rear w/bumper (in): N/A
• Ground to Top of Load Floor (in): 31.6
• Ground Clearance, Front (in): 9.3
• Ground Clearance, Rear (in): 9.3
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Side Door Opening Height (in): - TBD -
• Side Door Opening Width (in): - TBD -
• Step Up Height - Front (in): - TBD -
• Step Up Height - Side (in): 20.20
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 108.9
• Cargo Volume to Seat 2 (ft³): 60.3
• Cargo Volume to Seat 3 (ft³): 16.9
• Interior Dimensions
• Passenger Capacity: 7
• Front Head Room (in): 41.10
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 65.20
• Front Hip Room (in): 60.50
• Second Head Room (in): 39.20
• Second Leg Room (in): 39.00
• Second Shoulder Room (in): 65.20
• Second Hip Room (in): 60.60
• Third Head Room (in): 37.90
• Third Leg Room (in): 25.60
• Third Shoulder Room (in): 61.70
• Third Hip Room (in): 49.10
• Summary

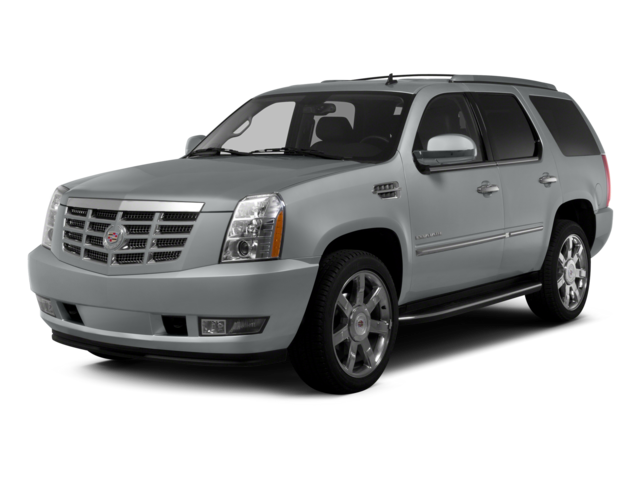

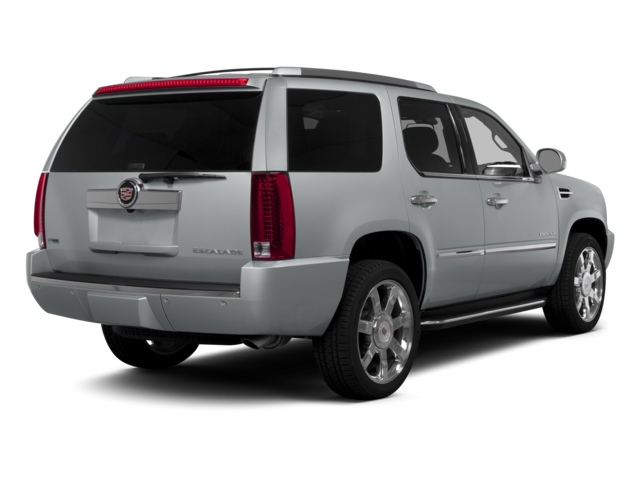

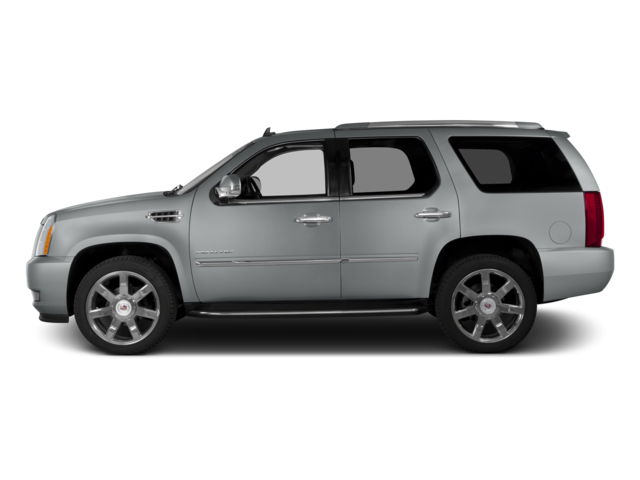

• Vehicle Name: Cadillac Escalade
• Body Style: Sport Utility Vehicle
• Body Code: N/A
• Emissions
• EPA Greenhouse Gas Score: 3 (2013)
• Tons/yr of CO2 Emissions @ 15K mi/year: 12.2
