• Paint scheme, solid, upper color, Summit White
• Paint scheme, solid, lower color, Summit White
• Exterior roof drip moldings
• Bumper, front, steel, 96" (243.8 cm) wide - styled to minimized wall to wall turn diameter painted argent
• Steps under cab doors
• Front mud flaps
• Integral grille and fenders - The grille is the same color as hood with single halogen headlamps.
• Roof marker lamps
• Daytime running lamps
• Windows, Solar-Ray tinted. Light tinted windshield and side window glass with light transmissity of 70%
• Mirrors, manual, 102" (259 cm) wide load, integral arm, integral convex mirror - black molded composite 12" x 7" (30.5 cm x 17.8 cm) with 6" x 7" (15.2 cm x 17.8 cm) convex section
• Windshield wipers, 2-speed and intermittent, with pulse washers
• Provisions for mounting front license plate
• Positive door stops

• Seat, driver, high-back bucket, fixed height, manual adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
• Seat, passenger, high-back bucket, fixed height, manual back angle adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
• Seat trim, vinyl, Very Dark Pewter
• Interior trim, Very Dark Pewter (Requires 69V Very Dark Pewter vinyl or 69C Very Dark Pewter cloth)
• Trim console - located next to driver's seat and two cupholders
• Molded vinyl floor covering
• Steering wheel 16"
• Two sided single common key for doors and ignition
• Headlamp warning buzzer
• Warning tone, key-in-ignition

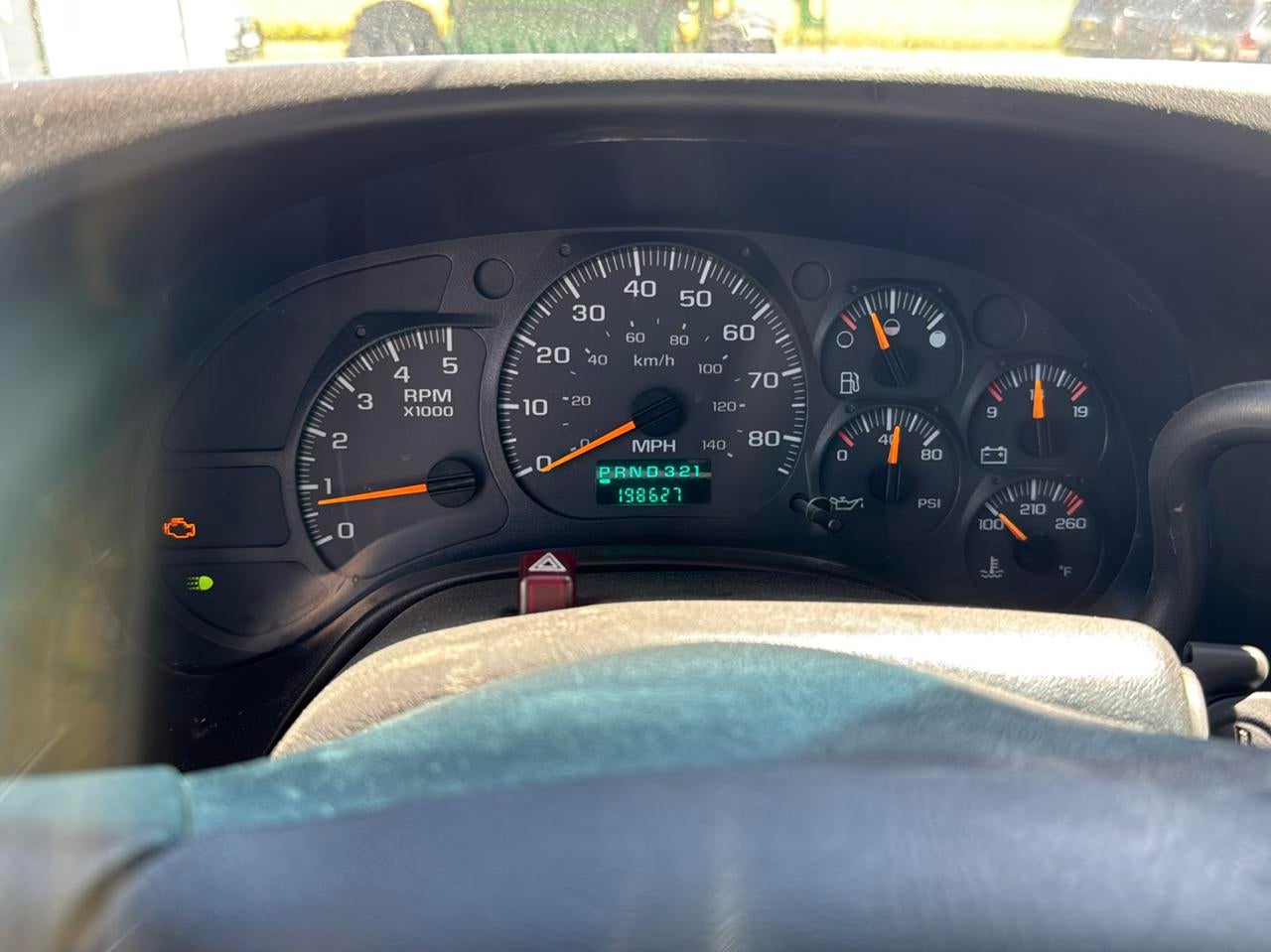

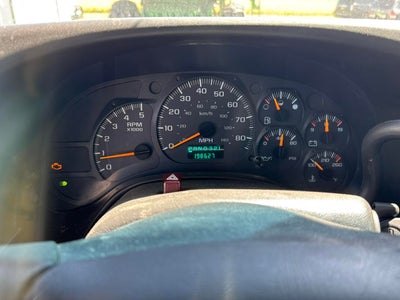

• Tachometer

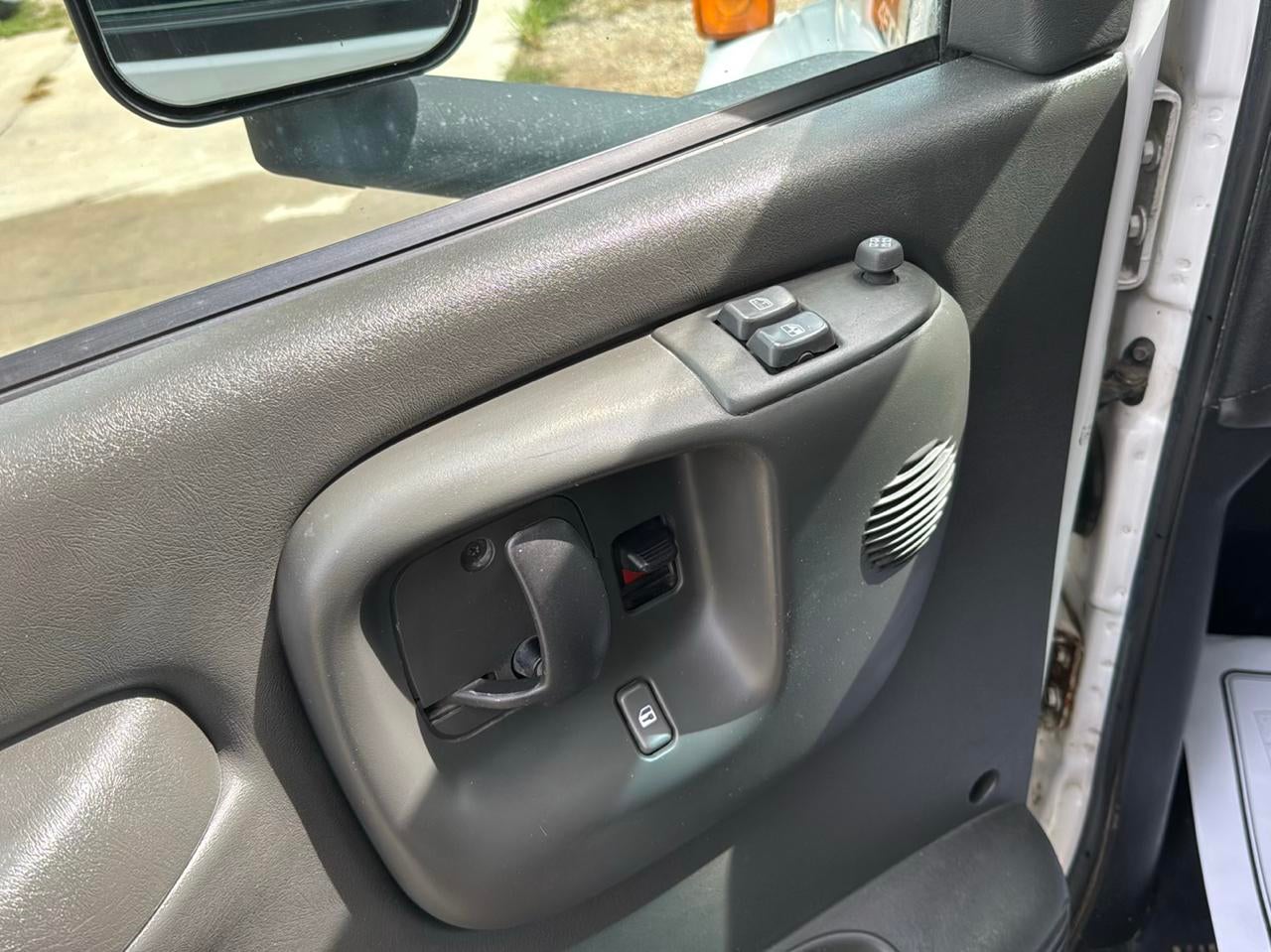

• Vinyl door trim panels - with storage pocket on front doors, beverage holders, and reflector on all doors
• Stepwell storage areas at each door front and rear. Includes storage cover.
• Cloth headliner
• Sunshades, passenger side and driver side, cloth-covered
• Coat hooks (2) located on cab back panel
• Dome lamp switches included on driver and passenger doors
• Provisions for stereo - Includes AM/FM antenna, lead wiring for speakers, and separate door chime module (N/A with ZQ2 power convenience option)
• Air conditioning not desired - this option should be ordered only when a customer does not require air conditioning
• Powerpoints - two in-cab power sources (in addition to optional cigarette lighter) for electrical plug-in accessories
• Underhood bodybuilder connections accessory power supply - Provides 12V power supply from the battery with two separate 30 amp fused circuits

• 4-wheel disc, 4-channel ABS
• Air bags, Supplemental Inflatable Restraints not included.
• This vehicle does not include any air bags
• Seat belt warning indicator
• Daytime running lamps

VORTEC 8.1L MD GASOLINE V8, 325 HP (239 KW) @ 4000 RPM AND 450 LB-FT TORQUE (610 N-M) @ 2800 RPM.

• Oil Level Sensor: Warning sensor for low oil levels (STD)

• GVWR
• 16
• 500 lbs. (7484 kg) capacity - GCWR limited to 26
• 000 lb. (11
• 794 kg) (Requires FM7 7000 lbs. (3175 kg) front axle) NOTE: Trucks that are used primarily to tow a trailer may be liable to Federal Excise Tax (FET). A New Law (Highway Transportation Bill HR3) was passed on August 10
• 2005 - Check with IRS for guidelines

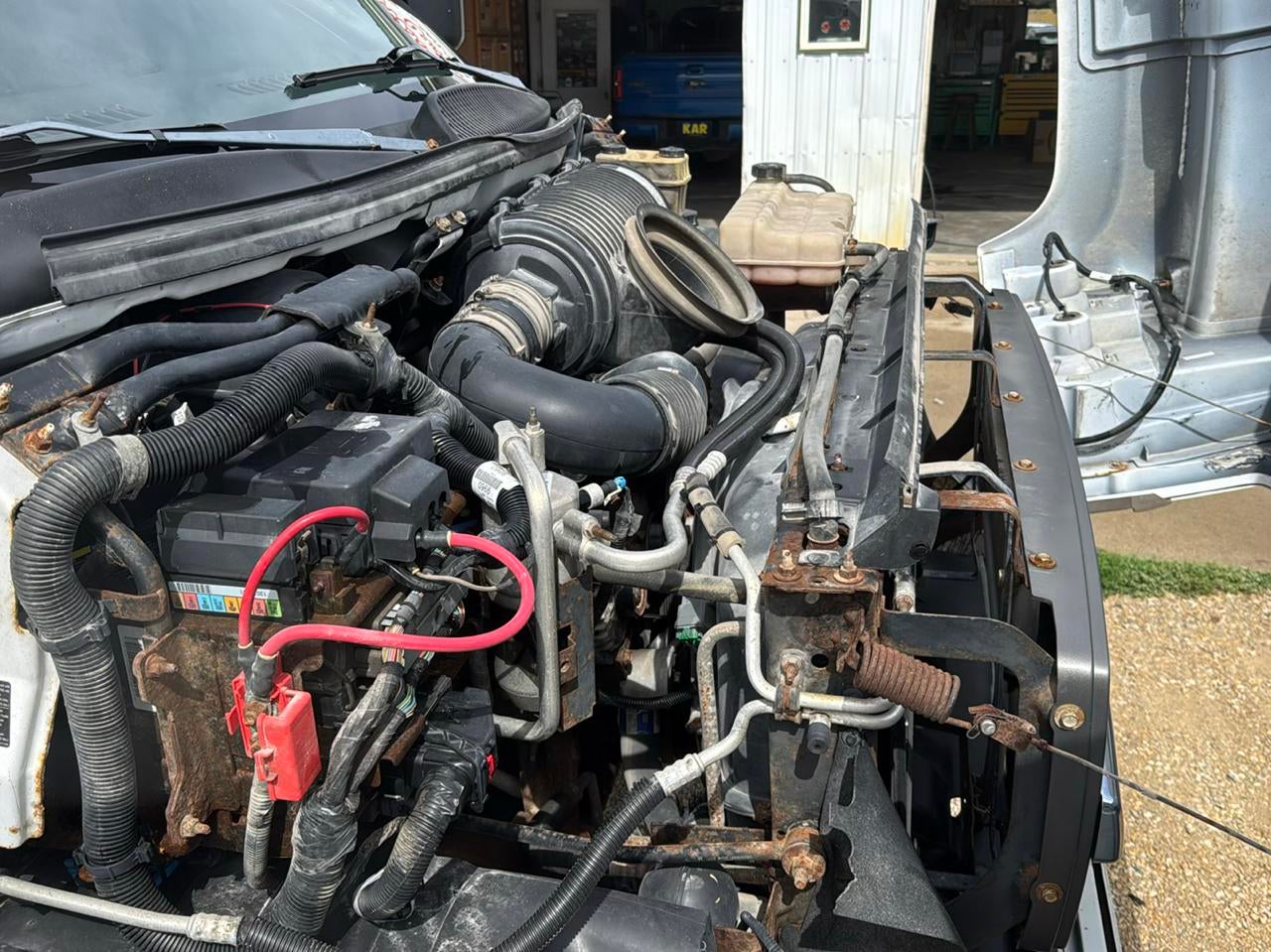

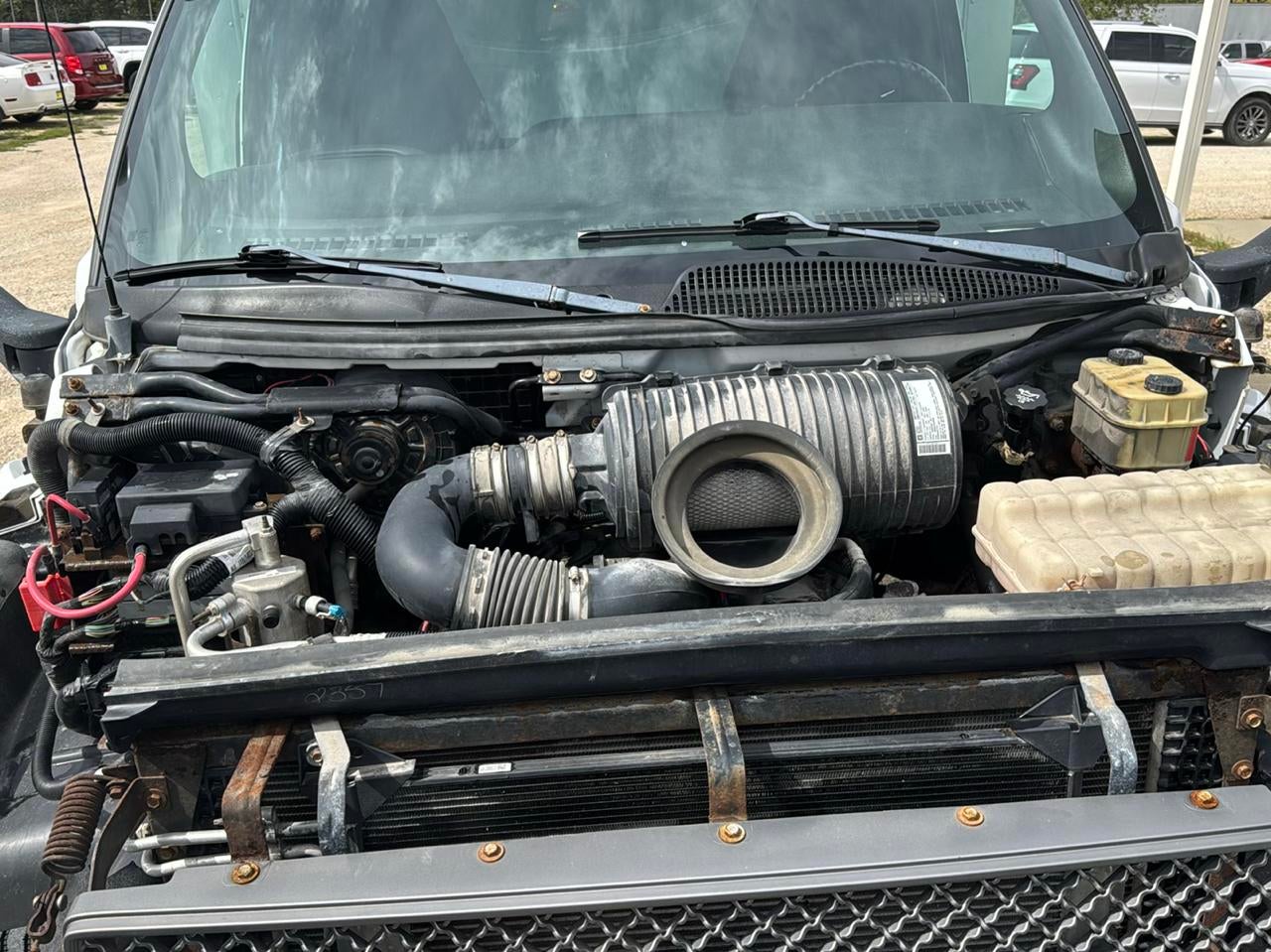

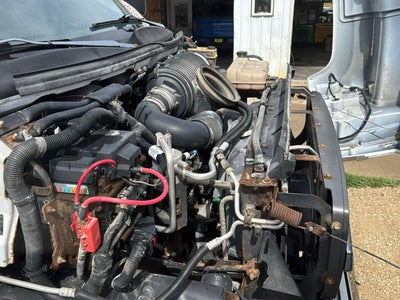

• Engine
• Vortec 8.1L MD gasoline V8
• 325 hp (239 kw) @ 4000 rpm and 450 lb-ft torque (610 N-m) @ 2
• 800 rpm. - Maximum engine speed 5000 rpm. Oil Level Sensor: Warning sensor for low oil levels
• Air cleaner
• dry type
• Cooling
• anti-freeze protection temperature - -40 degrees F (-40 degrees C)
• Road speed governor
• controlled by the speed rating of the tires ordered. - which will be less than or equal to 85 mph (137 kph); 80 mph (129 kph) with EC9 128"" wheelbase/60"" CA
• ML6 manual transmission and 008 4.88 rear axle ratio; 75 mph (120 kph) with EC9 128"" wheelbase/60"" CA
• M74 automatic transmission and HD2 rear axle
• Alternator
• AD244 Delco-Remy 150-amp maximum (N/A with YW2 wrecker package)
• Battery
• single
• 600 CCA
• ACDelco 12V - 115-minute reserve capacity @ 27 degrees C
• 600 CCA @ -18 degrees C grounded directly to starter
• (Requires gasoline engine; N/A with ANQ Snow Plow Prep or YW2 Wrecker Package)
• Exhaust
• single horizontal - passenger side mounted inside frame rail
• with gasoline engine stainless-steel exhaust with catalytic converter
• with diesel engines
• 409 stainless-steel exhaust
• oxidation catalyst
• diesel particulate filter and exhaust gas cooler
• Option PTO not required - This option should only be ordered when a customer specifically does not require an electric hand throttle for use with power-take-off provisions. (Note: Will delete transmission PTO gear.)
• TranSynd synthetic automatic transmission fluid
• Front axle
• 7000 lbs. (3175 kg) capacity - I-beam Wide-trac. Up to 53 degree turn angle
• includes 4-piston brake apply calipers. Steering Gear Series: ZF8014
• Front suspension
• tapered leaf
• 7000 lbs. (3175 kg) capacity (includes stabilizer)
• Front shock absorber
• diameter 1.375"" (35mm)
• Front stabilizer bar
• 2"" x 2"" square tube (5 cm x 5 cm)
• Front tire manufacturer code
• Goodyear (Requires S4A Goodyear)
• Front tread
• premium
• highway (Requires R4A Goodyear or R4L Michelin)
• Rear axle
• single speed
• 11
• 000 lbs. (4990 kg) capacity - full floating
• Includes 2-piston brake applied calipers
• Rear wheel drive
• Rear axle ratio
• 5.13:1 (Requires gasoline engine)
• Rear suspension
• multi-leaf
• 11
• 000 lbs. (4990 kg) capacity (Requires GL4 single speed rear axle)
• Rear suspension brackets are riveted to frame in lieu of bolts
• Rear shock absorber not desired (N/A with tapered leaf springs)

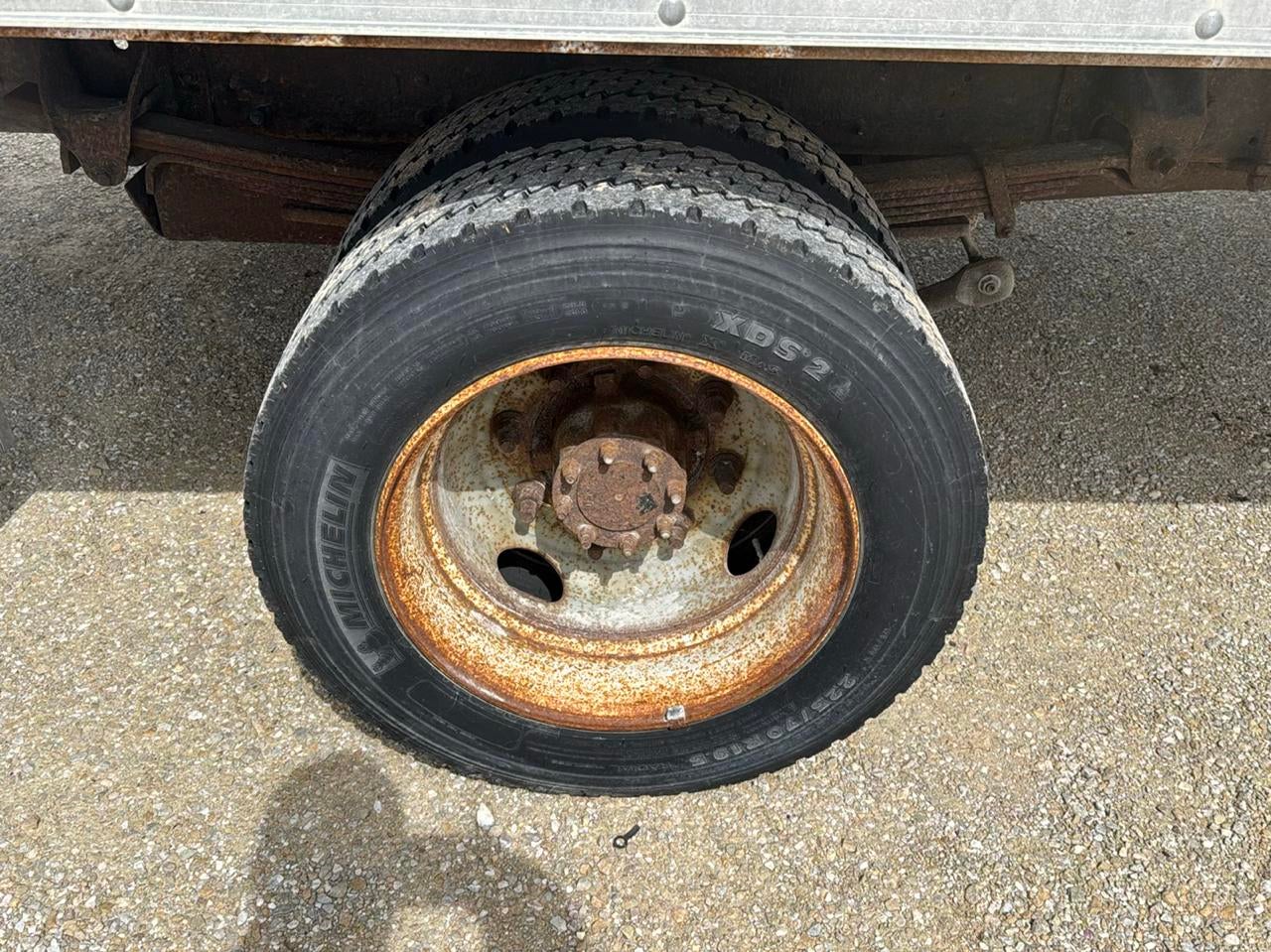

• Rear tire size
• 225/70R19.5F - 13
• 660 lbs. (6196 kg) capacity
• (With S4A Goodyear
• requires S3C rear premium highway tread or S3H rear traction tread; with S4L Michelin
• requires S3C rear premium highway tread or S3J rear highway traction tread)
• Rear tire manufacturer code
• Goodyear (Requires R4A Goodyear)
• Rear tread
• premium
• highway (Requires S4A Goodyear or S4L Michelin)
• Wheelbase
• 128"" (325.1 cm) - with 60"" (152.4 cm) CA and 100"" (254 cm) CE. Includes a 6 mm 80
• 000 psi (551
• 600 kPa) yield strength
• steel frame
• RBM: 610
• 400 Section Modulus 7.63 (Available with all GVWs. With GZX GVW
• requires KYW 75 mph (120 kph) road speed governor.)
• Frame
• 6mm - 80
• 000 psi (551
• 600 kPa) yield strength
• steel frame
• RBM: 610
• 400 Section Modulus 7.63
• Fuel tank
• single
• 25-gallon (95L) fuel capacity - gas or diesel located midship between the frame rails
• with fuel fill neck through the frame rail (this option uses the mid-frame tank included in the NG6 dual tank option) Tethered fuel cap is black with gasoline engines
• and green un-tethered fuel cap with diesel engines. MINIMUM OVERHANG = 36"" (3 FEET) (Required in YW2 Wrecker Package
• standard on 60"" (152.4 cm) CA
• optional on all other CA's)
• Fuel sender assembly. Robust fuel pump
• Tethered fuel cap
• Steering
• power - ZF variable ratio power
• Parking brake
• hand lever operated transmission mounted drum brake
• Paint scheme
• solid
• upper color
• Summit White
• Paint scheme
• solid
• lower color
• Summit White
• Exterior roof drip moldings
• Bumper
• front
• steel
• 96"" (243.8 cm) wide - styled to minimized wall to wall turn diameter painted argent
• Steps under cab doors
• Front mud flaps
• Integral grille and fenders - The grille is the same color as hood with single halogen headlamps.
• Roof marker lamps
• Windows
• Solar-Ray tinted. Light tinted windshield and side window glass with light transmissity of 70%
• Mirrors
• manual
• 102"" (259 cm) wide load
• integral arm
• integral convex mirror - black molded composite 12"" x 7"" (30.5 cm x 17.8 cm) with 6"" x 7"" (15.2 cm x 17.8 cm) convex section
• Windshield wipers
• 2-speed and intermittent
• with pulse washers
• Provisions for mounting front license plate
• Positive door stops
• Interior trim
• Very Dark Pewter (Requires 69V Very Dark Pewter vinyl or 69C Very Dark Pewter cloth)
• Trim console - located next to driver's seat and two cupholders
• Molded vinyl floor covering
• Steering wheel 16""
• Two sided single common key for doors and ignition
• Headlamp warning buzzer
• Warning tone
• key-in-ignition

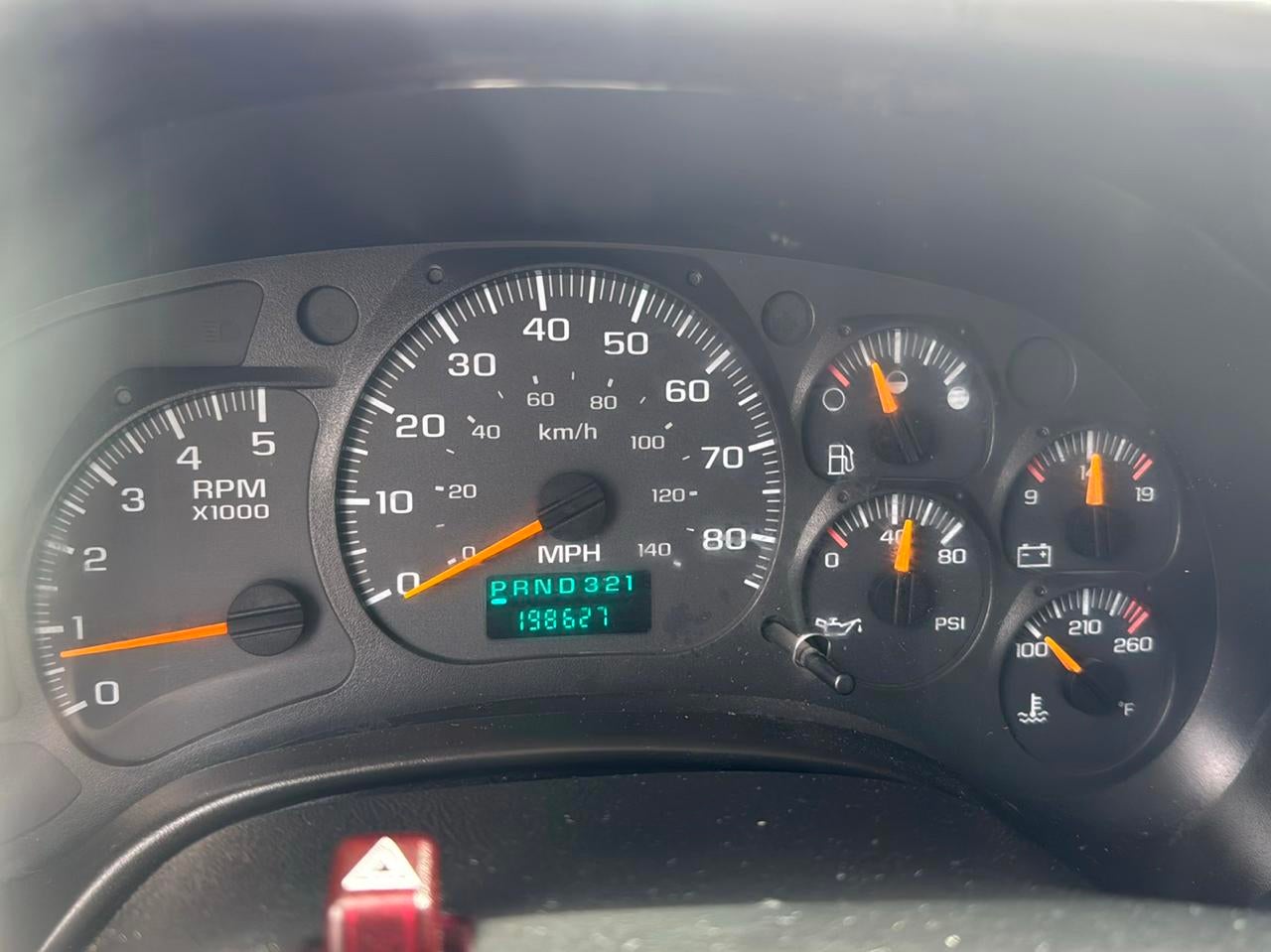

• Tachometer
• Electronic engine hour meter
• Engine ""Check Gauges"" telltale light and buzzer
• oil pressure gauge
• Gauges
• low oil pressure and coolant level
• high coolant and engine oil temperature
• Vinyl door trim panels - with storage pocket on front doors
• beverage holders
• and reflector on all doors
• Stepwell storage areas at each door front and rear. Includes storage cover.
• Cloth headliner
• Sunshades
• passenger side and driver side
• cloth-covered
• Coat hooks (2) located on cab back panel
• Dome lamp switches included on driver and passenger doors
• Provisions for stereo - Includes AM/FM antenna
• lead wiring for speakers
• and separate door chime module (N/A with ZQ2 power convenience option)
• Air conditioning not desired - this option should be ordered only when a customer does not require air conditioning
• Air bags
• Supplemental Inflatable Restraints not included.
• This vehicle does not include any air bags
• Seat belt warning indicator

• Vehicle
• Front Frame Rating: - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 29.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 6250
• Gross Axle Wt Rating - Rear (lbs): 11000
• Curb Weight - Front (lbs): 4433.3
• Curb Weight - Rear (lbs): 2517.1
• Gross Vehicle Weight Rating Cap (lbs): 17500
• Gross Combined Wt Rating (lbs): 60000
• Suspension
• Suspension Type - Front: Tapered Leaf
• Suspension Type - Rear: MultiLeaf
• Spring Capacity - Front (lbs): 7000
• Spring Capacity - Rear (lbs): 11000
• Axle Type - Front: Reverse I Beam
• Axle Type - Rear: Single Speed
• Axle Capacity - Front (lbs): 6250
• Axle Capacity - Rear (lbs): 11000
• Axle Ratio (:1) - Rear: 5.13
• Shock Absorber Diameter - Front (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.5
• Brakes
• Brake Type: Pwr 2 Piston
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 15 x 1.5
• Tires
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Number Of Tires Spare: 1

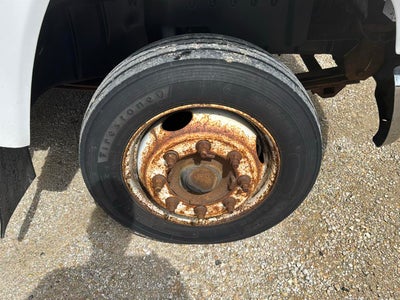

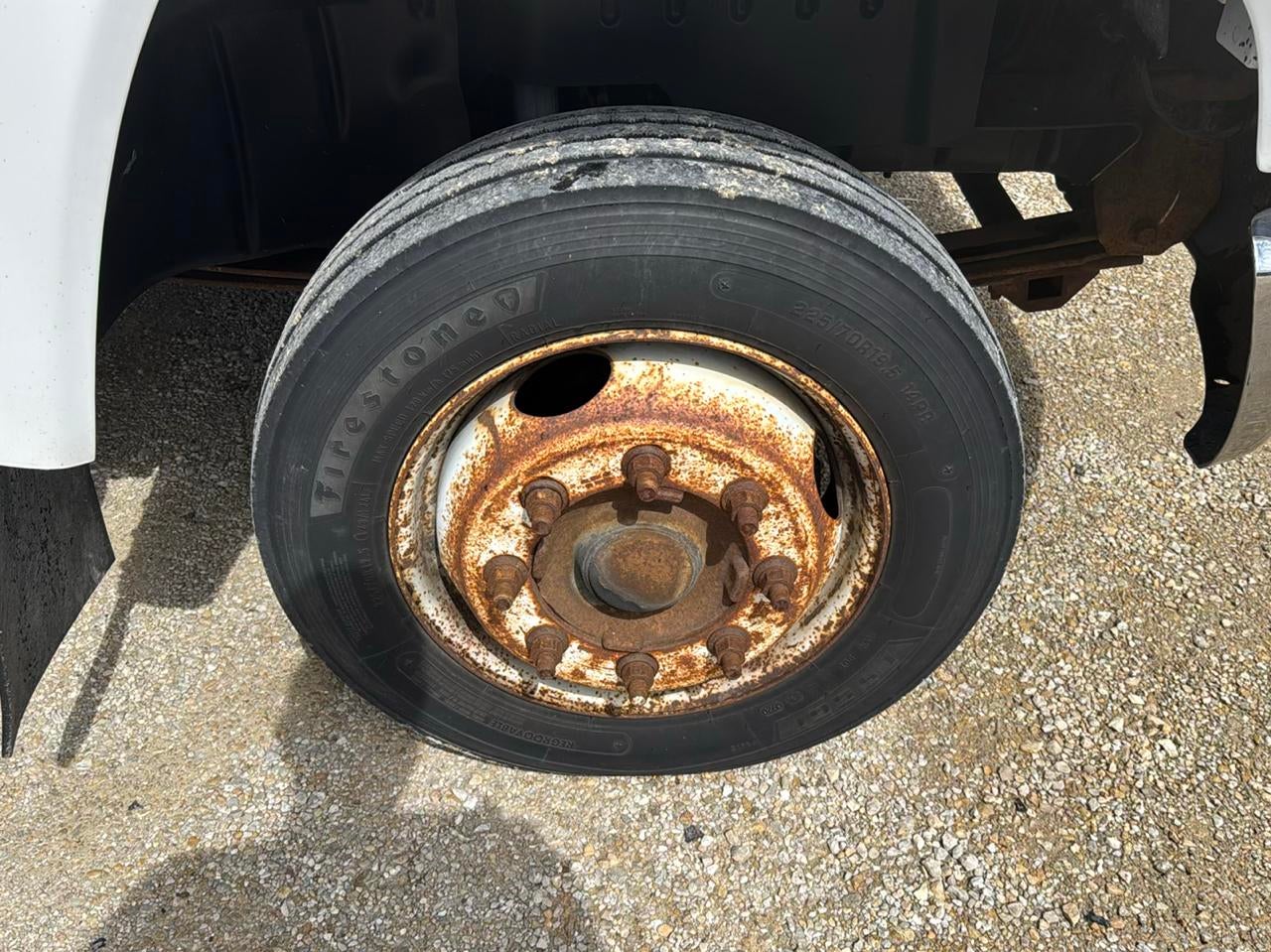

• Wheels
• Front Wheel Size (in): 19.5 x 6.75
• Rear Wheel Size (in): 19.5 x 6.75
• Front Wheel Offset (mm): 5.60
• Rear Wheel Offset (mm): 5.60
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Rear: 8
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Front Wheel Description Cont.: Hub Piloted
• Rear Wheel Description Cont.: Hub Piloted
• Front Bolt Pattern: 8stud/275mm
• Rear Bolt Pattern: 8stud/275mm
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.1
• Steering Ratio (:1), At Lock: 19.6
• Frame
• Frame Type: Ladder-Type
• Sect Modulus Rails Only (in³): 7.63
• Frame RBM (N/A): 610400
• Frame Strength (lbs): 80000
• Frame Thickness (in): 0.24
• Fuel Tank
• Fuel Tank Location: LH
• Exterior Dimensions
• Length, Overall w/o rear bumper (in): 205.5
• Width, Max w/o mirrors (in): 95.9
• Height, Overall (in): 89.4
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 74.7
• Front Bumper to Back of Cab (in): 105
• Frame Width, Rear (in): 2.84
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 41.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68.8
• Front Hip Room (in): 65.0
• Summary

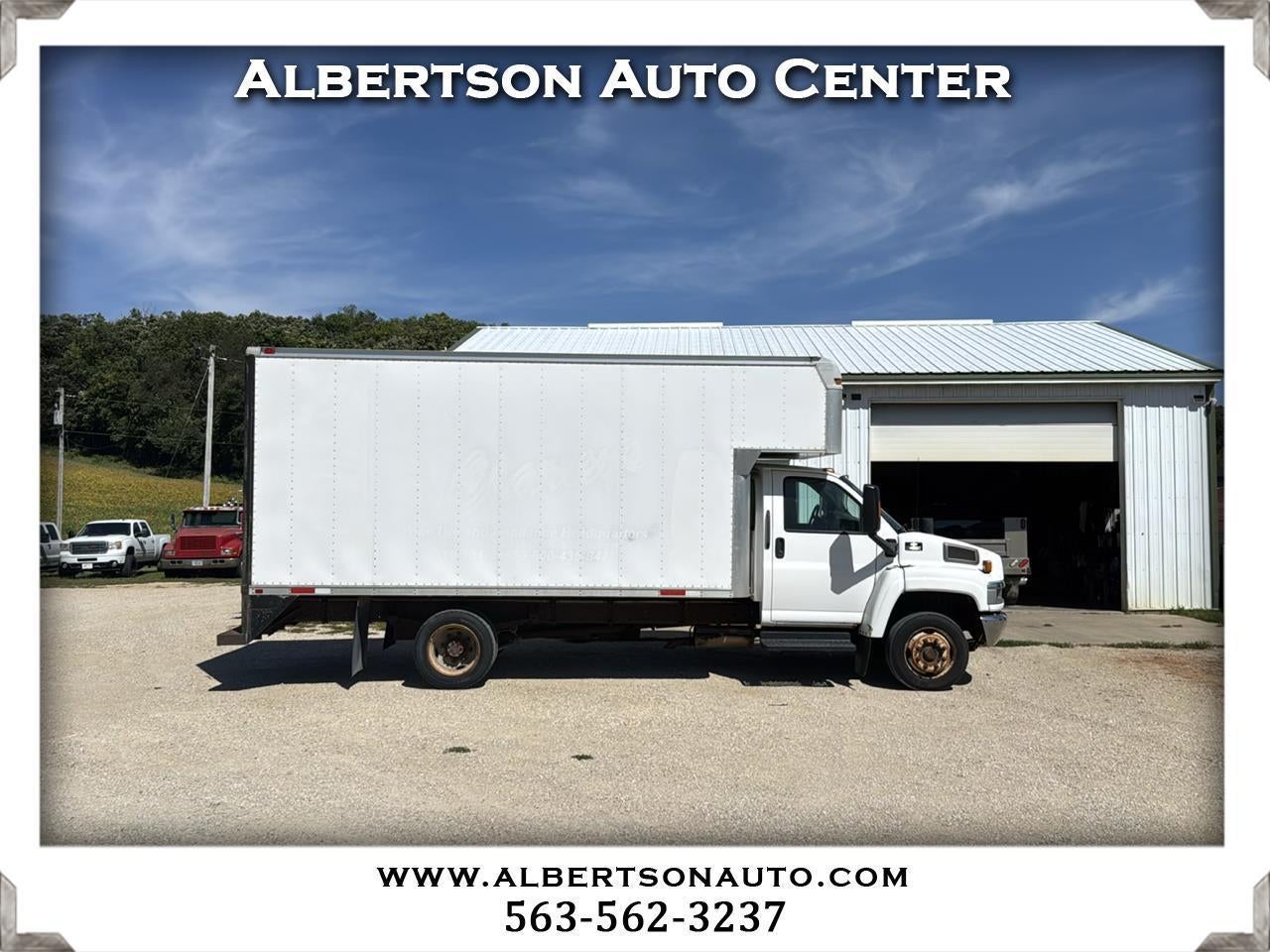

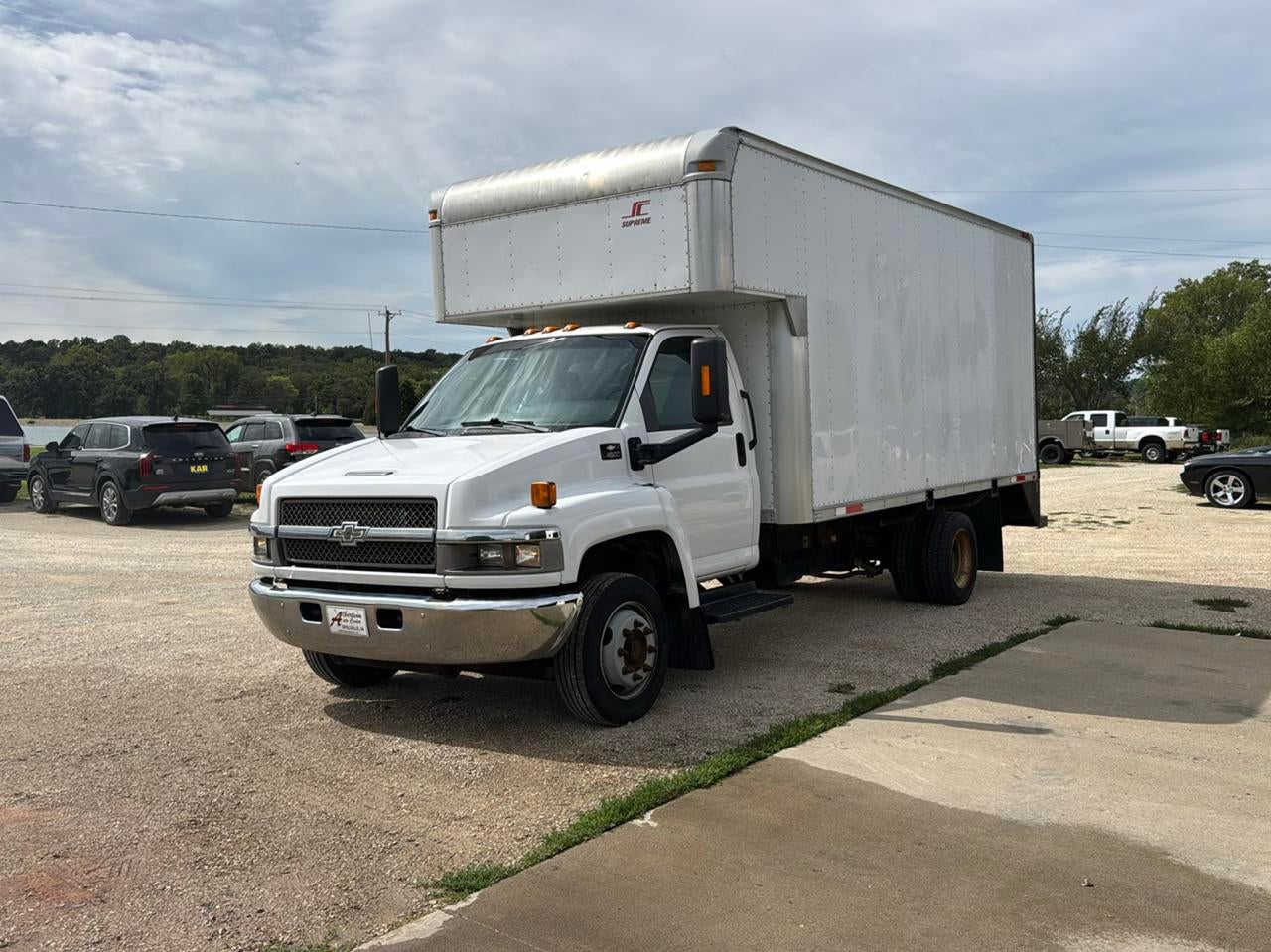

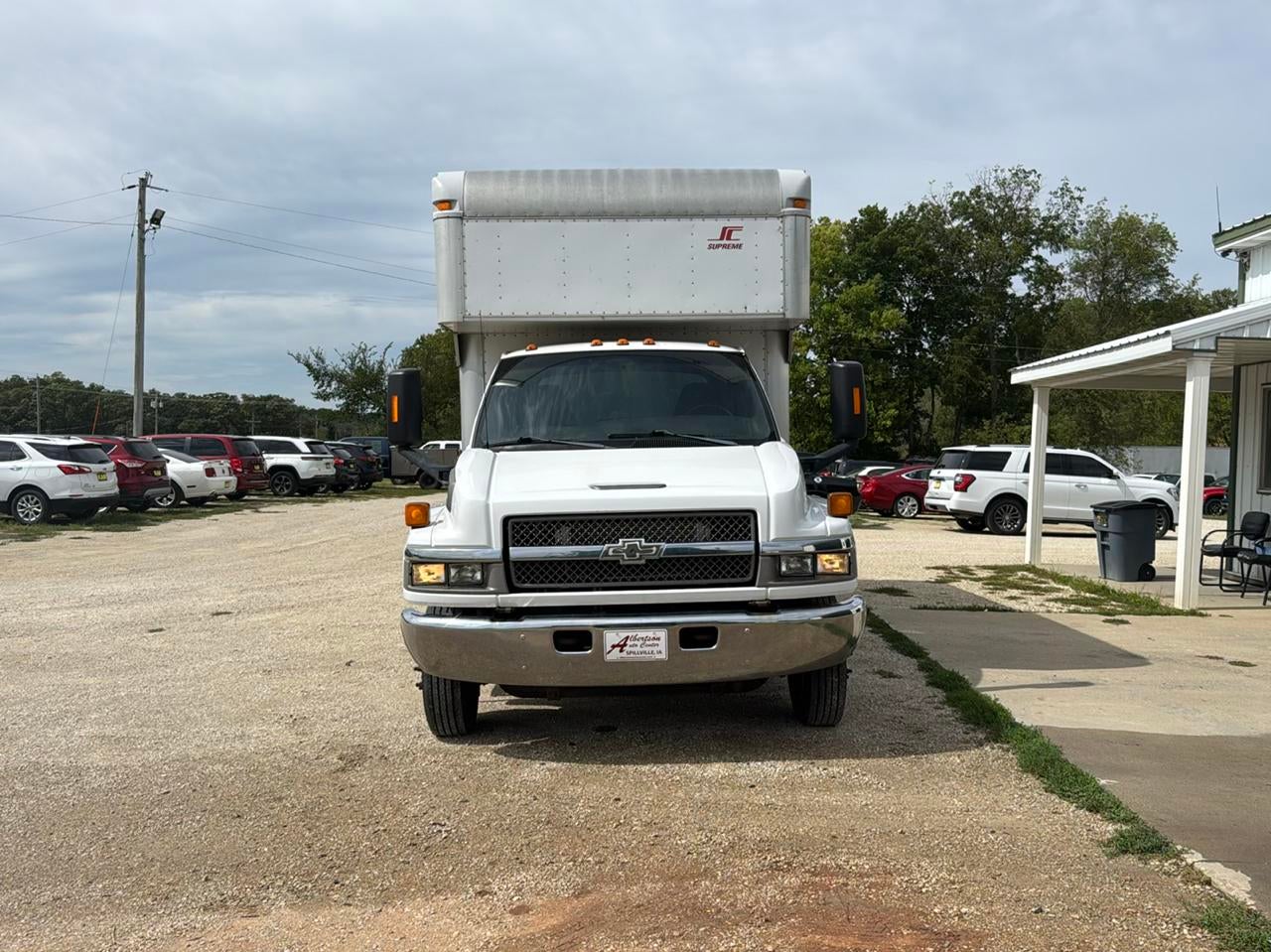

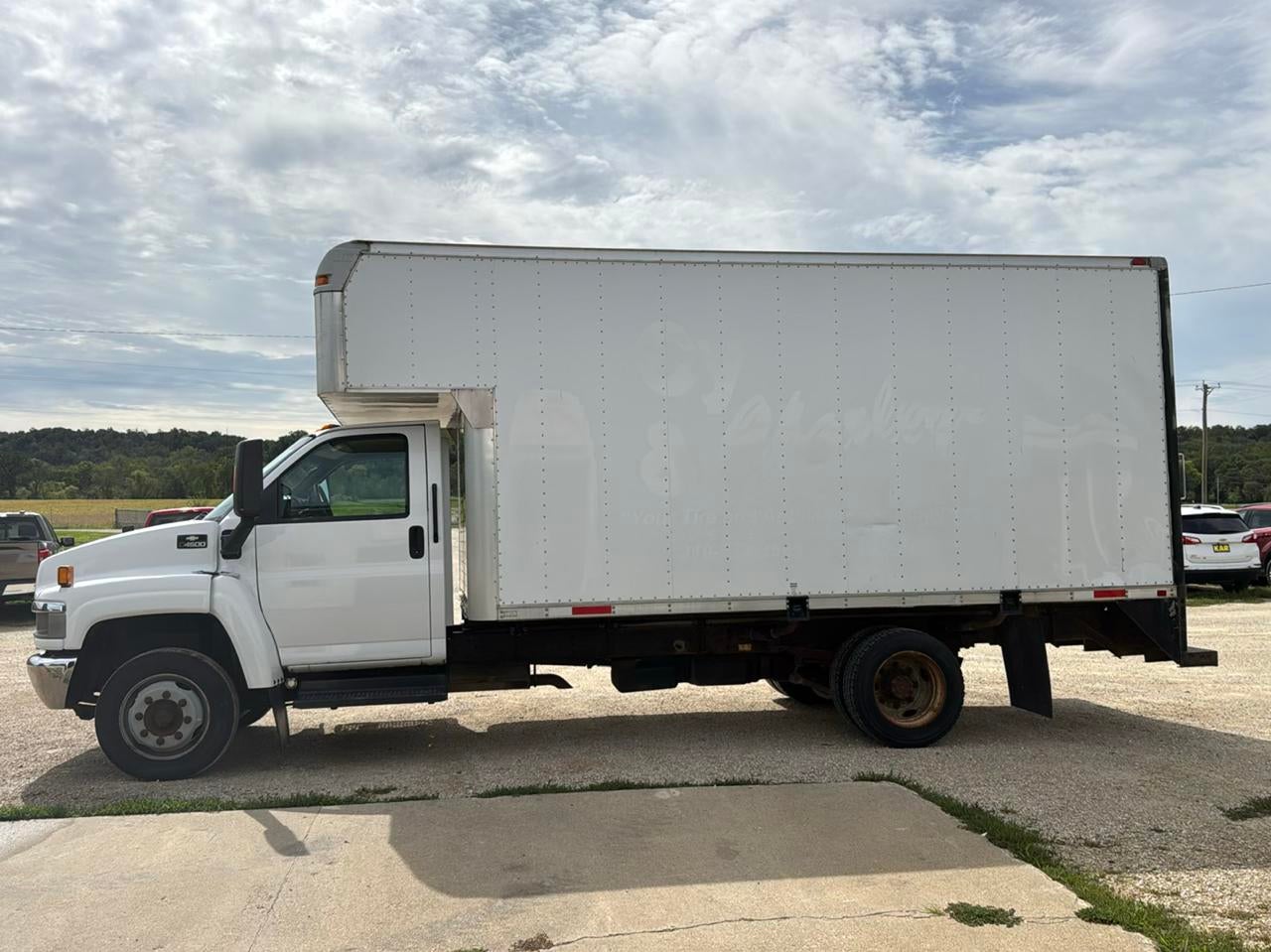

• Vehicle Name: Chevrolet CC4500
• Body Style: Regular Chassis Cab 2WD
• Medium Duty Performance
• Driver Ratio: 0.75
• Torque @ Clutch Engage (ft-lbs): 332
• Torque Converter: 2.05
• Static Loaded Radius (in): 17.4
• Max Speed For Gradeability: 75
